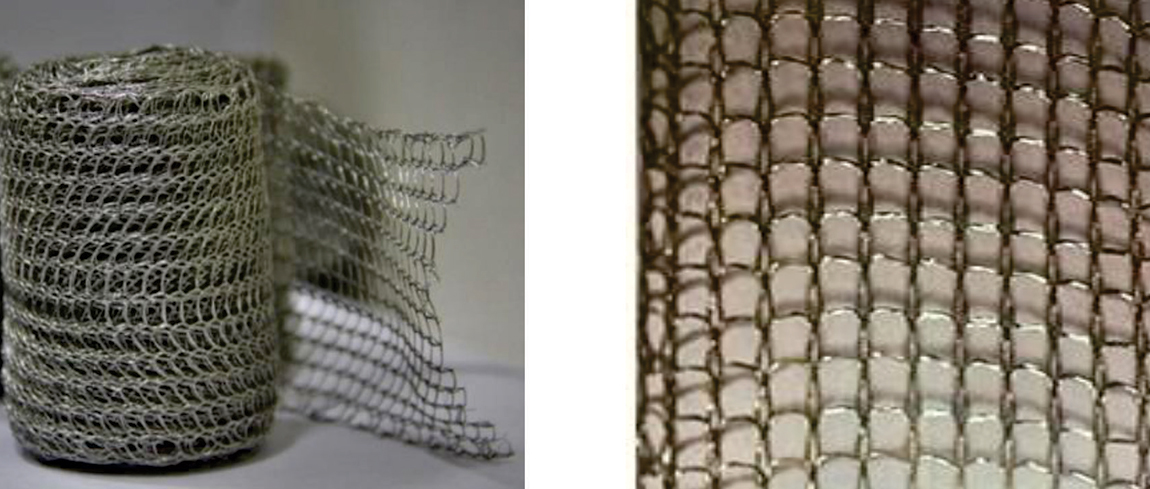

Tinned copper knitted flat mesh

TINNED COPPER KNITTED FLAT MESH FOR SHIELDING OF HEATSHRINK / COLDSHRINK & CAST RESIN STRAIGHT JOINTS

MATERIAL : Cu- ETP ( Grade C 101) - ROHS COMPLIENT

PRODUCTS CODE	NO OF WIRE	WIDTH	LENGTH	CROSS REFERENCE
BGFM14-100-150	4	100 MM	150 MM	EPPA-009-150
BGFM14-100-400	4	100 MM	400 MM	EPPA-009-400?
BGFM14-100-500	4	100 MM	500 MM	EPPA-009-500
BGFM14-100-600	4	100 MM	600 MM	EPPA-009-600
BGFM14-100-450	4	100 MM	450 MM	EPPA-009-450
BGFM14-100-550	4	100 MM	550 MM	EPPA-009-550
BGFM14-100-650	4	100 MM	650 MM	EPPA-009-650
BGFM14-100-850	4	100 MM	850 MM	EPPA-009-850
BGFM14-100-1050	4	100 MM	1050 MM	EPPA-009-1050
BGFM14-100-1300	4	100 MM	1300 MM	EPPA-009-1300
BGFM14-100-1500	4	100 MM	1500 MM	EPPA-009-1500
BGFM14-100-1650	4	100 MM	1650 MM	EPPA-009-1650
BGFM14-100-2000	4	100 MM	2000 MM	EPPA-009-2000
BGFM14-100-2500	4	100 MM	2500 MM	EPPA-009-2500
BGFM14-100-3000	4	100 MM	3000 MM	EPPA-009-3000
BGFM14-100-7000	4	100 MM	7000 MM	EPPA-009-7000
BGFM14-100-8000	4	100 MM	8000 MM	EPPA-009-8000
BGFM14-60-150	4	60 MM	150MM
BGFM14-60-100	4	60 MM	100MM
BGFM14-60-200	4	60 MM	200MM
BGFM14-60-300	4	60 MM	300MM
BGFM14-60-450	4	60 MM	450MM
BGFM14-60-550	4	60 MM	550MM
BGFM14-60-650	4	60 MM	650MM
BGFM14-60-850	4	60 MM	850MM
BGFM14-60-1050	4	60 MM	1050MM
BGFM14-60-1300	4	60 MM	1300MM
BGFM14-60-1500	4	60 MM	1500MM
BGFM14-60-1650	4	60 MM	1650MM
BGFM14-60-2000	4	60 MM	2000MM
BGFM14-60-2500	4	60 MM	2500MM
BGFM14-6-3000	4	60 MM	3000MM
BGFM14-60-4000	4	60 MM	4000MM
BGFM14-60-5000	4	60 MM	5000MM
BGFM14-60-6000	4	60 MM	6000MM

TYPE	WIDTH	WIRE DIA	NO. OF WIRES	LOOPS (MESH)
FLAT MESH	60mm +/-0.1mm	0.1 MM	4	14
FLAT MESH	100mm + 2mm	0. 1 MM	4	50

LENGTH 3 METER TO 200 METER AS PER REQUIREMENT

COPPER MESH DESIGN: 4X0.1 MM= 4 WIRES IN EACH LOOP STD SIZES OF 60MM & 100MM
