| FOR HEATSHRINK & PRE MOULDED TERMINATION - ROHS COMPLIENT |
| PRODUCT | DIAMETER | WIDTH | THICKNESS | WIDTH OF COLLAR BONE | CROSS |
| CODE | +/-1 (MM) | +/-1 (MM) | +/-0.5 (MM) | +/-1 (MM) | REFERENCE |
| BGSR-4960 | 49 | 60 | 1.5 | 7 | EPPA-041-3-60 |
| BGSR-5460 | 54 | 60 | 1.5 | 7 | EPPA-041-3-60 |
| BGSR-5760 | 57 | 60 | 1.5 | 7 | EPPA-041-5-60 |
| BGSR-6260 | 62 | 60 | 1.5 | 7 | EPPA-041-6-60 |
| BGSR-6770 | 67 | 70 | 1.5 | 10 | EPPA-041-7-60 |
| BGSR-7370 | 73 | 70 | 1.5 | 10 | EPPA-041-8-60 |
| BGSR-7770 | 77 | 70 | 1.5 | 10 | ?EPPA-041-9-60 |
| BGSR-8670 | 86 | 70 | 1.5 | 10 | EPPA-041-11-60 |
| BGSR-9780 | 97 | 80 | 1.5 | 10 | EPPA-041-13-60 |
| BGSR-10580 | 105 | 80 | 2.0 (+/ -0.5) | 10 | EPPA-041-15-60 |
| BGSR-11080 | 110 | 80 | 2.0 (+/ -0.5) | 10 | EPPA-041-15-60 |
| 25 MM OD TO 110 MM OD 60 MM TO 80 MM LENGTH ( ANY VARIOUS SIZE ) |

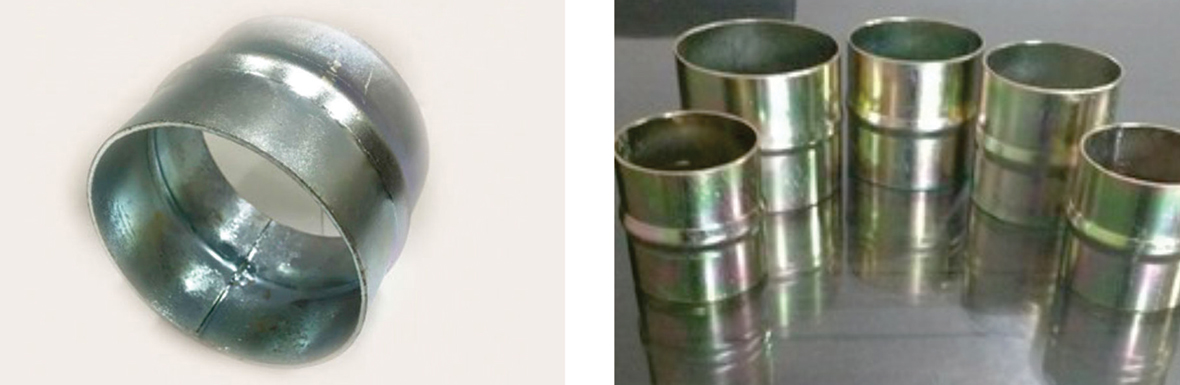

| APPLICATION : M. S. GALVANIZED SUPPORT RING IS USED IN TERMINATION CABLE JOINTS |
| IF YOUR REQUIREMENT ARE NOT LISTED, PLEASE CONTACT US TO REVIEW |
