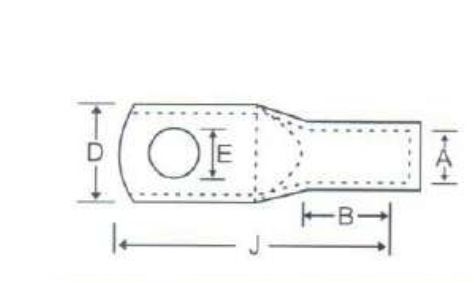

| Cat No. | Cable Size | E | B | D | A | J | TOOL RECOMMENDED DIE REFERENCE | NUMBER OF CRIMPS | STRIP LENGTH |
| CEOL 6- 6 | 8 | M 5 | 10 | 8.5 | 3.8 | 30.5 | M-4,1H14 | 1 | 18mm |
| CEOL 6- 6 | 8 | M 6 | 10 | 8.5 | 3.8 | 31.5 | |||
| CEDL 6- 8 | 8 | M 8 | 10 | 13.0 | 3.8 | 340 | |||
| CEDL 10 | 5 | M5 | 10 | 9.0 | 45 | 34.0 | MrMH14 | 1 | 18mm |
| CEDL 10 | 5 | M 6 | 10 | 9.0 | 45 | 34.5 | |||
| CEDL 10.8 | 6 | M8 | 10 | 13.0 | 45 | 37.0 | |||
| CEDL16-6 | 6 | M 6 | 20 | 13,0 | 55 | 43.5 | hr1=MH14 | 1 | 18mm |
| CEDL 16.8 | 6 | M 8 | 20 | 13.0 | 5.5 | 46.0 | |||
| CEDL 16-10 | 6 | M10 | 20 | 17.0 | 5.5 | 48.0 | |||
| CEDL 16-12 | 6 | M12 | 20 | 18.0 | 5.5 | 49.0 | |||
| CEDL 25 - 6 | 4 | M 6 | 20 | 14.0 | 7.0 | 45.5 | I=EC050 DIE.UL100 | 1 | 18mm |
| CEDL 25 - 8 | 4 | M 8 | 20 | 16.0 | 7.0 | 48.0 | |||
| CEDL 25-10 | 4 | M10 | 20 | 17.0 | 7.0 | 50.0 | |||
| CEDL 25-12 | 4 | M12 | 20 | 19.0 | 7.0 | 51.0 | |||
| CEDL 35 - 6 | 2 | M 6 | 20 | 17.0 | 8.2 | 49.5 | I=EC050 DIE UL125 | 1 | 18mm |
| CEDL 35 - 8 | 2 | M B | 20 | 17.0 | 8.2 | 52.0 | |||
| CEDL 35-10 | 2 | M10 | 20 | 19.0 | 8.2 | 54.0 | |||
| CEDL 35-12 | 2 | M12 | 20 | 21.0 | 8.2 | 55.0 | |||
| CEDL 35-14 | 2 | M14 | 20 | 21.0 | 8.2 | 56.5 | |||
| CEDL 50 - 8 | 1 | M8 | 28 | 20.0 | 10.0 | 62.0 | I=EC050 DIE.UL145 | 2 | 26mm |
| CEDL 50-10 | 1 | M10 | 28 | 22.0 | 10.0 | 64.0 | |||
| CEDL 50-12 | 1 | M12 | 28 | 24.0 | 10.0 | 65,0 | |||
| CEDL 50-14 | 1 | M14 | 28 | 24,0 | 10.0 | 66.5 | |||
| CEDL 50-16 | 1 | M16 | 28 | 28.0 | 10.0 | 68 | |||
| CEDL 710 - 8 | 210 | M 8 | 25 | 24.0 | 11.5 | 650 | I=EC050 DIE.UL165 | 2 | 26mm |
| CEDL 7C-10 | 210 | M10 | 28 | 24.0 | 11,5 | 674 | |||
| CEDL 70.12 | 2,0 | M12 | 26 | 24.0 | 11.5 | 68.0 | |||
| CEDL 70.14 | 210 | M14 | 28 | 24.0 | 11.5 | 695 | |||
| CEDL 70-16 | 210 | M16 | 28 | 30.0 | 11.5 | 71.0 | |||
| CEDL 95.8 | 10 | M 8 | 35 | 28.0 | 13.5 | 770 | I=EC050 DIEUL190 | 2 | 33mm |
| CEDL 95-10 | 3/0 | M10 | 35 | 28.0 | 13.5 | 77.0 | |||
| CEDL 95-12 | 3/0 | M12 | 35 | 28.0 | 13.5 | 78.0 | |||
| CEDL 95-14 | 3/0 | M14 | 35 | 28.0 | 13.5 | 79.5 | |||
| CEDL 95-16 | 3/0 | M16 | 35 | 32.0 | 13.5 | 81.0 | |||
| CEDL 120 - 10 | 250 MCM | M10 | 35 | 32.0 | 15.5 | 85.0 | 1=EC050 DIEUL210 | 2 | 33mm |
| CEDL 120 -12 | 250 MCM | M12 | 35 | 32.0 | 155 | 86.0 | |||
| CEDL 120 -14 | 250 MCM | M14 | 35 | 32,0 | 15.5 | 88.0 | |||
| CEDL 120 - 16 | 250 MCM | M16 | 35 | 34.0 | 15.5 | 89.0 | |||
| CEDL 120 - 20 | 250 MCM | M20 | 35 | 38.0 | 15.5 | 91.0 | |||
| CEDL 153 -10 | 300 MCM | M10 | 35 | 34.0 | 170 | 93.0 | 1-,REC-5510 DIE.UL235 | 2 | 33mm |
| CEDL 150 - 12 | 300 MCM | M12 | 35 | 34.0 | 17_0 | 94.0 | |||
| CEDL 150. 14 | 300 MCM | M14 | 35 | 34.0 | 170 | 97.0 | |||
| CEDL 150 - 16 | 300 MCM | ru116 | 35 | 34.0 | 17.0 | 97.0 | |||
| CEDL 150 - 20 | 300 MCM | M20 | 35 | 40.0 | 17.0 | 99.0 | |||
| COX 185 - 10 | 400 MCM | M10 | 40 | 37.3 | 19.0 | 97.0 | I=REC-5510 DIE.UL255 | 2 | 38mm |
| CEDL 185 - 12 | 400 MCM | M12 | 40 | 37.0 | 19.0 | 98.0 | |||
| CEDL 185 - 14 | 400 MCM | M14 | 40 | 37,0 | 19.0 | 101.0 | |||
| CEDL 185 - 16 | 400 MCM | M16 | 40 | 37.0 | 19.0 | 101.0 | |||
| CEDL 185 - 20 | 400 MCM | M20 | 40 | 40.0 | 19.0 | 103.0 | |||
| CEDL 240 -12 | 500 MCM | M12 | 40 | 42.0 | 21.5 | 108.0 | I=REC-5510 DIE.UL290 | 2 | 38mm |
| CEDL 240 - 14 | 500 MCM | M14 | 43 | 42.0 | 21.5 | 111.0 | |||
| CEDL 240 -16 | 500 MCM | M16 | 40 | 42.0 | 21.5 | 111.0 | |||
| CECIL 240 - 20 | 500 MCM | M20 | 40 | 45.0 | 21.5 | 113.0 | |||
| CEDL 300 - 14 | 600 MCM | M14 | 50 | 46.0 | 24.5 | 119.0 | I=REC-5510 DIE.UL320 | 2 | 48mm |
| CEDL 300 - 16 | 60C MCM | M16 | 50 | 48.0 | 24.5 | 119.0 | |||
| CEDL 300 - 20 | 60C MCM | M20 | 50 | 48.0 | 24.5 | 122.0 | |||
| CEDL 400. 14 | 750 MOM | M14 | 70 | 55.0 | 27.5 | 140.0 | C.CRIMP-FT-1400 DIE H385 | 3 | 68mm |
| CEDL 400 -16 | 750 MCM | M16 | 70 | 55.0 | 27.5 | 140.0 | |||
| CEDL 400 - 20 | 750 MCM | M20 | TO | 55.0 | 27.5 | 140.0 |
