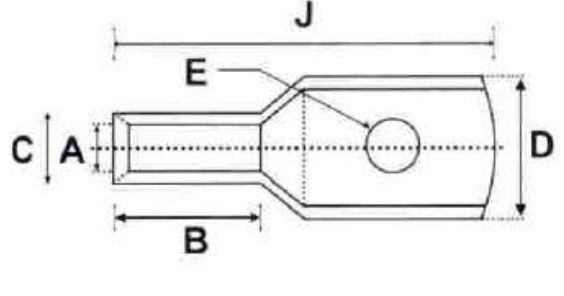

| Cable mm2 | Stud Hole E | B | D | A | C | J | CAT No. |
| 1.5 | M 4 | 5.5 | 8.0 | 1.8 | 3.7 | 17.0 | CEHD 1.5-4 |
| 1.5 | M 5 | 5.5 | 8.0 | 1.8 | 3.7 | 17.0 | CEHD 1.5-5 |
| 1.5 | M 6 | 5.5 | 9.5 | 1.8 | 3.7 | 19.0 | CEHD 1.5-6 |
| 2.5 | M 4 | 8.0 | 8.5 | 2.4 | 4.0 | 21.5 | CEHD 2.5-4 |
| 2.5 | M 5 | 8.0 | 8.5 | 2.4 | 4.0 | 21.5 | CEHD 2.5-5 |
| 2.5 | M 6 | 8.0 | 9.5 | 2.4 | 4.0 | 21.5 | CEHD 2.5-6 |
| 2.5 | M 8 | 8.0 | 11.0 | 2.4 | 4.0 | 24.0 | CEHD 2.5-8 |
| 4 | M 4 | 8.0 | 9.5 | 3.1 | 4.8 | 21.0 | CEHD 4-4 |
| 4 | M 5 | 8.0 | 9.5 | 3.1 | 4.8 | 21.0 | CEHD 4-5 |
| 4 | M 6 | 8.0 | 9.5 | 3.1 | 4.8 | 21.0 | CEHD 4-6 |
| 4 | M 8 | 8.0 | 11.0 | 3.1 | 4.8 | 25.0 | CEHD 4-8 |
| 6 | M 5 | 10.0 | 9.5 | 3.8 | 5.5 | 23.0 | CEHD 6-5 |
| 6 | M 6 | 10.0 | 10.5 | 3.8 | 5.5 | 27.0 | CEHD 6-6 |
| 6 | M 8 | 10.0 | 11.0 | 3.8 | 5.5 | 27.0 | CEHD 6-8 |
| 6 | M 10 | 10.0 | 14.5 | 3.8 | 5.5 | 32.0 | CEHD 6-10 |
| 10 | M 5 | 10.0 | 10.5 | 4.5 | 6.2 | 25.5 | CEHD 10-5 |
| 10 | M 6 | 10.0 | 10.5 | 4.5 | 6.2 | 25.5 | CEHD 10-6 |
| 10 | M 8 | 10.0 | 11,5 | 4.5 | 6.2 | 27.5 | CEHD 10-8 |
| 10 | M 10 | 10.0 | 14,5 | 4.7 | 71 | 32.0 | CEHD 10-10 |
| 10 | M 12 | 10.0 | 18.0 | 4.7 | 71 | 36.0 | CEHD 10-12 |
| 16 | M 5 | 13.0 | 11.5 | 5.4 | 7.1 | 31.0 | CEHD 16-5 |
| 16 | M 6 | 13.0 | 11,5 | 5.4 | 7.1 | 31,0 | CEHD 16-6 |
| 16 | M 8 | 13.0 | 11,5 | 5.4 | 7.1 | 31.0 | CEHD 16-8 |
| 16 | M 10 | 13.0 | 14.5 | 5.5 | 7.9 | 35.0 | CEHD 16-10 |
| 16 | M 12 | 13.0 | 18.0 | 5.5 | 7.9 | 39.0 | CEHD 16-12 |
| 20 | M 8 | 13.0 | 11,5 | 6.0 | 7.7 | 32.5 | CEHD 20-8 |
| 25 | M 6 | 14.0 | 12.5 | 6.8 | 8.8 | 33.0 | CEHD 25-6 |
| 25 | M 8 | 14.0 | 13.0 | 6.8 | 8.8 | 33.0 | CEHD 25-8 |
| 25 | M 10 | 14.0 | 14.5 | 6.8 | 8.8 | 36.5 | CEHD 25-10 |
| 25 | M 12 | 14.0 | 16.5 | 6.8 | 8.8 | 40.0 | CEHD 25-12 |
| 35 | M 6 | 140 | 15.0 | 8.2 | 10.6 | 36.0 | CEHD 35-6 |
| 35 | M 8 | 14.0 | 15.0 | 8.2 | 10.6 | 36.0 | CEHD 35-8 |
| 35 | M 10 | 14.0 | 16.0 | 8.2 | 10.6 | 39.0 | CEHD 35-10 |
| 35 | M 12 | 15.5 | 21.0 | 8.2 | 10.6 | 47.0 | CEHD 35-12 |
| 50 | M15 | 18.0 | 18.0 | 9.5 | 12.4 | 45.0 | CEHD 50-6 |
| 50 | M 8 | 18.0 | 18.0 | 9.5 | 12,4 | 45.0 | CEHD 50-8 |
| 50 | M 10 | 18.0 | 18.0 | 9.5 | 12.4 | 45.0 | CEHD 50-10 |
| 50 | M 12 | 22.0 | 21.0 | 9.5 | 12.4 | 52.0 | CEHD 50-12 |
| 50 | M 14 | 18.0 | 22.0 | 9.5 | 12.4 | 52.0 | CEHD 50-14 |
| 50 | M 16 | 18.0 | 22.0 | 9.5 | 12.4 | 52.0 | CEHD 50-16 |
| 70 | M 6 | 20.0 | 21.0 | 11.2 | 14.7 | 52.0 | CEHD 70-6 |
| 70 | M 8 | 20.0 | 21.0 | 11.2 | 14.7 | 52.0 | CEHD 70-8 |
| 70 | M 10 | 20.0 | 21.0 | 11.2 | 14.7 | 52.0 | CEHD 70-10 |
| 70 | M 12 | 20.0 | 21.0 | 11.2 | 14.7 | 52.0 | CEHD 70-12 |
| 70 | M 14 | 20.0 | 25.0 | 11.2 | 14.7 | 55.0 | CEHD 70-14 |
| 70 | M 16 | 20.0 | 25.0 | 11.2 | 147 | 55.0 | CEHD 70-16 |
| Cable mm2 | Stud Hole E | B | D | A | C | J | CAT No. |
| 70 | M 20 | 20.0 | 28.0 | 11.2 | 14.7 | 57.0 | CEHD 70-20 |
| 95 | M 22 | 22.0 | 25.0 | 13.5 | 17.4 | 57.0 | CEHD 95-8 |
| 95 | M 10 | 22.0 | 25.0 | 13.5 | 17.4 | 57.0 | CEHD 95-10 |
| 95 | M 12 | 22.0 | 25.0 | 13.5 | 17.4 | 57.0 | CEHD 95-12 |
| 95 | M 14 | 22.0 | 26.0 | 13.5 | 17.4 | 57.0 | CEHD 95-14 |
| 95 | M 16 | 22.0 | 26.0 | 13.5 | 17.4 | 60_0 | CEHD 95-16 |
| 95 | M 20 | 22.0 | 28.0 | 13.5 | 17.4 | 60.0 | CEHD 95-20 |
| 120 | M8 | 24.0 | 28.0 | 15.0 | 19.4 | 63.0 | CEHD 120-8 |
| 120 | M 10 | 24.0 | 28.0 | 15.0 | 19.4 | 63.0 | CEHD 120-10 |
| 120 | M 12 | 24.0 | 28.0 | 15.0 | 19.4 | 63.0 | CEHD 120-12 |
| 120 | M 14 | 24.0 | 28.0 | 15.0 | 19.4 | 63.0 | CEHD 120.14 |
| 120 | M 16 | 24.0 | 28.0 | 15.0 | 19.4 | 63.0 | CEHD 120-16 |
| 120 | M 20 | 24.0 | 31.0 | 15.0 | 19.4 | 70.0 | CEHD 120-20 |
| 150 | M8 | 29.0 | 30.5 | 16.5 | 21.2 | 71.0 | CEHD 150-8 |
| 150 | M 10 | 29.0 | 30.5 | 16.5 | 21.2 | 71.0 | CEHD 150-10 |
| 150 | M 12 | 29.0 | 30.5 | 16.5 | 21.2 | 71.0 | CEHD 150.12 |
| 150 | M 14 | 29.0 | 30.5 | 16.5 | 21 | 71.0 | CEHD 150-14 |
| 150 | M 16 | 29.0 | 30.5 | 16.5 | 21.2 | 71.0 | CEHD 150-16 |
| 150 | M 20 | 29.0 | 30.5 | 16.5 | 21.2 | 71 | CEHD 150-20 |
| 185 | M 10 | 34.0 | 34.0 | 18.5 | 23.5 | 79.0 | CEHD 185-10 |
| 185 | M 12 | 34.0 | 34.0 | 18.5 | 23.5 | 79.0 | CEHD 185-12 |
| 185 | M 14 | 34.0 | 34.0 | 18.5 | 23.5 | 79.0 | CEHD 185-14 |
| 185 | M 16 | 34.0 | 34.0 | 18.5 | 23.5 | 79.0 | CEHD 185-16 |
| 185 | M 20 | 34.0 | 34,0 | 18.5 | 23.5 | 79.0 | CEHD 185-20 |
| 240 | M 10 | 39.0 | 38.0 | 21.0 | 26.5 | 93.0 | CEHD 240-10 |
| 240 | M 12 | 39.0 | 38.0 | 21.0 | 26.5 | 93.0 | CEHD 240-12 |
| 240 | M 14 | 39.0 | 38.0 | 21.0 | 26.5 | 93.0 | CEHD 240-14 |
| 240 | M 16 | 39.0 | 38.0 | 21.0 | 26.5 | 93.0 | CEHD 240-16 |
| 240 | M 20 | 39.0 | 38.0 | 21.0 | 26.5 | 93.0 | CEHD 240-20 |
| 300 | M 10 | 44.0 | 43,0 | 23.5 | 30,0 | 101.0 | CEHD 300-10 |
| 300 | M 12 | 44.0 | 43.0 | 23.5 | 30.0 | 101.0 | CEHD 300-12 |
| 300 | M 14 | 44.0 | 43.0 | 23.5 | 30.0 | 101.0 | CEHD 300-14 |
| 300 | M 16 | 44.0 | 43,0 | 23.5 | 30.0 | 101.0 | CEHD 300-16 |
| 300 | M 20 | 44.0 | 43.0 | 23.5 | 30.0 | 101.0 | CEHD 300-20 |
| 400 | M 10 | 47.0 | 50.0 | 26.8 | 34.8 | 116.0 | CEHD 400-10 |
| 400 | M 12 | 47.0 | 50.0 | 26.8 | 34.8 | 116.0 | CEHD 400-12 |
| 400 | M 14 | 47.0 | 50.0 | 26.8 | 34.8 | 116.0 | CEHD 400-14 |
| 400 | M 16 | 47.0 | 50.0 | 26.8 | 34.8 | 116.0 | CEHD 400-16 |
| 400 | M 20 | 470 | 50.0 | 26.8 | 34.8 | 116.0 | CEHD 400-20 |
| 500 | M 16 | 52.0 | 55.5 | 30.0 | 39.0 | 126.0 | CEHD 500-16 |
| 500 | M 20 | 52.0 | 55.5 | 30.0 | 39.0 | 126.0 | CEHD 500-20 |
| 630 | M 16 | 59.0 | 64.5 | 35.0 | 45.0 | 146.0 | CEHD 630-16 |
| 630 | M 20 | 59.0 | 64.5 | 35.0 | 45.0 | 146.0 | CEHD 630.20 |
| 800 | - | 78.0 | 72.5 | 39.0 | 50.6 | 171.0 | CEHD 800 |
| 1000 | - | 90.0 | 80.5 | 43.0 | 56.2 | 202.0 | CEHD 1000 |
