| MATERIAL: STAINLESS STEEL GRADE 301 |
| PRODUCT NUMBER | INNER DIA (MM) | WIDTH | LENGTH (MM) | USAGE RANGE | CROSS REFERENCE | |
| MIN (MM) | MAX (MM) | |||||
| BG1 | 10 | 13 | 280 | 12 | 20 | EPPA-034-A |
| BG1 | 14 | 13 | 400 | 17 | 28 | EPPA-034-B |
| BG1 | 20 | 13 | 570 | 25 | 40 | EPPA-034-C |
| BG1 | 30 | 13 | 850 | 36 | 60 | EPPA-034-D |
| BG1 | 14 | 25 | 570 | 17 | 29 | EPPA-034-E |
| BG1 | 22 | 25 | 700 | 30 | 39 | EPPA-034-F |
| BG1 | 30 | 25 | 950 | 40 | 60 | EPPA-034-G |
| BG1 | 38 | 30 | 1100 | 50 | 75 | EPPA-034-H |
| BG1 | 38 | 30 | 1350 | 50 | 75 | EPPA-034-I |
| BG1 | 10 | 13 | 400 | 12 | 20 | EPPA-034-K |
| BG1 | 45 | 30 | 1350 | 57 | 85 | EPPA-034-L |
| BG1 | 25 | 25 | 850 | 33 | 45 | EPPA-034-M |
| BG1 | 19 | 25 | 650 | 25 | 34 | EPPA-034-N |
| BG1 | 70 | 30 | 1500 | 85 | 110 | EPPA-034-O |

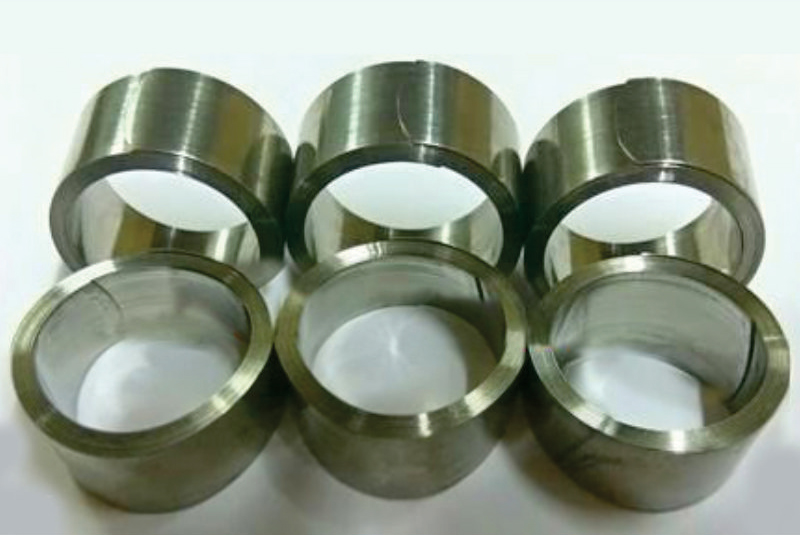

| APPLICATION : SPRING STEEL ROLL IS USED TO SECURE THE EARTH BRAID TO THE COPPER SCREEN BY MEANS OF SPRING TENSION. IT IS ALSO CALLED SOLDERLESS EARTHING BRAID CLAMP |
| ROLL SPRING PROVIDE A RELIABLE METHOD OF SOLDERLESS EARTHING |
| IF YOUR REQUIREMENT ARE NOT LISTED, PLEASE CONTACT US TO REVIEW YOUR REQUIREMENT |
