TINNED COPPER FLAT BRAID WITH SOLDER BLOCK

TINNED COPPER WIRE FLAT BRAID WITH SOLDER BLOCK AND CONNECTOR (LUGS) AT ONE END

FOR HEATSHRINK TERMINATION

MATERIAL : Cu- ETP ( Grade C 101) - ROHS COMPLIENT

PRODUCT DESCRIPTION	C.S.A SQ.MM	L1 MM (-0/+10)	L2 MM (+/-10)	NO. OF WIRES	CARRIERS NO. OF	WIDTH MM (+/-10%)	LUGS (SQ.MM)	CROSS REFERENCE
BGFB-1510-400SB	10	400	60	23	24	14	25	EPPA-036-2-400
BGFB-1510-500SB	10	500	60	23	24	14	25	EPPA-036-2-500
BGFB-1510-800SB	10	800	60	23	24	14	25	EPPA-036-2-800
BGFB-1510-1000SB	10	1000	60	23	24	14	25	EPPA-036-2-1000
BGFB-1516-300SB	16	300	60	37	24	20	50	EPPA-036-3-300
BGFB-1516-400SB	16	400	60	37	24	20	50	EPPA-036-3-400
BGFB-1516-500SB	16	500	60	37	24	20	50	EPPA-036-3-500
BGFB-1516-800SB	16	800	60	37	24	20	50	EPPA-036-3-800
BGFB-1516-1000SB	16	1000	60	37	24	20	50	EPPA-036-3-1000
BGFB-1525-400SB	25	400	60	29	48	22	70	EPPA-036-4-400
BGFB-1525-620SB	25	620	60	29	48	22	70	EPPA-036-4-620
BGFB-1525-1000SB	25	1000	60	29	48	22	70	EPPA-036-4-1000
BGFB-1525-1200SB	25	1200	60	29	48	22	70	EPPA-036-4-1200
BGFB-1525-2000SB	25	2000	60	29	48	22	70	EPPA-036-4-2000
BGFB-1535-500SB	35	500	90	41	48	25	70	EPPA-036-5-500
BGFB-1535-1000SB	35	1000	90	41	48	25	70	EPPA-036-5-1000
BGFB-1535-1700SB	35	1700	90	41	48	25	70	EPPA-036-5-1700
BGFB-1535-850SB	35	850	90	41	48	25	70	EPPA-036-5-850
BGFB-1550-500SB	50	500	90	58	48	33	95	EPPA-036-6-500
BGFB-1550-850SB	50	850	90	58	48	33	95	EPPA-036-6-850
BGFB-1550-1000SB	50	1000	90	58	48	33	95	EPPA-036-6-1000
BGFB-1570-500SB	70	500	90	83	48	40	120	EPPA-036-7-500
BGFB-1570-800SB	70	800	90	83	48	40	120	EPPA-036-7-800
BGFB-15120-250SB	120	250	90	142	48	50	150	EPPA-036-9-250
BGFB-15120-500SB	120	500	90	142	48	50	150	EPPA-036-9-500
BGFB-15120-1000SB	120	1000	90	142	48	50	150	EPPA-036-9-1000

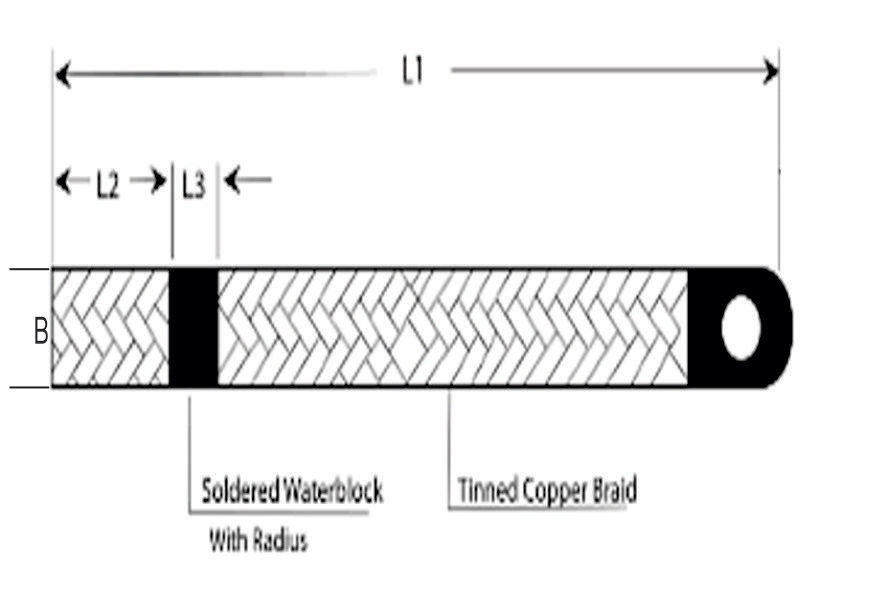

L1= TOTAL LENGH L2= DISTANCE TO BE LEFT FOR SOLDER BLOCK

SIZE OF SOLDER BLOCK IS STANDARD 25 MM TOLERANCE +10 / -5 MM

WIRE DIAMETER 0.15 MM COMMON FOR ALL
