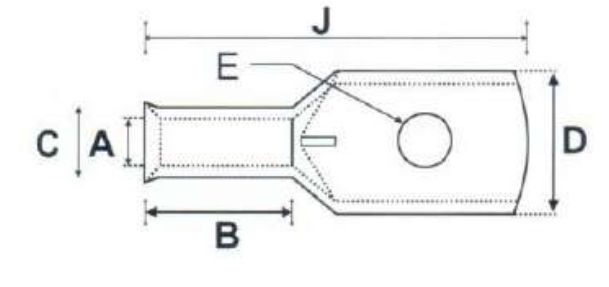

| Cable mm2 | Stud Hole E | B | D | A | C | J | CAT No. |
| 1.5 | M 3 | 6 | 7.0 | 1.8 | 3.7 | 18 | CEBM-1.5.3 |
| 1.5 | M 4 | 6 | 8.0 | 1.8 | 3.7 | 18 | CEBM-1.5-4 |
| 1.5 | M 5 | 6 | 8.0 | 1.8 | 3.7 | 19 | CEBM-1.5-5 |
| 1.5 | M 6 | 6 | 10.0 | 1.8 | 3.7 | 21 | CEBM-1.5-6 |
| 2.5 | M 3 | 7 | 7.0 | 2.4 | 4.0 | 19 | CEBM-2.5-3 |
| 2.5 | M 4 | 7 | 8.0 | 2.4 | 4.0 | 19 | CEBM-2.5-4 |
| 2.5 | M 5 | 7 | 8.0 | 2.4 | 4.0 | 20 | CEBM-2.5-5 |
| 2.5 | M 6 | 7 | 10.0 | 2.4 | 4.0 | 22 | CEBM-2.5-6 |
| 2.5 | M 8 | 7 | 12.0 | 2.4 | 4.3 | 26 | CEBM-2.5-8 |
| 4 | M 4 | 9 | 8.0 | 3,1 | 4.8 | 21 | CEBM-4-4 |
| 4 | M 5 | 9 | 8,0 | 3.1 | 4,8 | 22 | CEBM-4-5 |
| 4 | M 6 | 9 | 10.0 | 3.1 | 4.8 | 24 | CEBM-4-6 |
| 4 | M 8 | 9 | 12,0 | 3.1 | 4.8 | 28 | CEBM-4-8 |
| 6 | M 5 | 10 | 8.0 | 3.8 | 5.5 | 22 | CEBM-6-5 |
| 6 | M 6 | 10 | 8.0 | 3.8 | 5.5 | 23 | CEBM-8-6 |
| 6 | M 6 | 10 | 10.0 | 3.8 | 5.5 | 25 | CEBM-6-8 |
| 6 | M 10 | 10 | 12,0 | 3.8 | 5.5 | 29 | CEBM-6-10 |
| 6 | M 12 | 10 | 16,0 | 3,8 | 5.5 | 34 | CE6M-6-12 |
| 10 | M 5 | 10 | 9.0 | 4.5 | 6.2 | 23 | CEBM-10-5 |
| 10 | M 6 | 10 | 10.0 | 4.5 | 6.2 | 25 | CHM-14-6 |
| 10 | M 8 | 10 | 12.0 | 4.5 | 6.2 | 29 | CE6M-10-8 |
| 10 | M 10 | 10 | 15.0 | 4.5 | 6.2 | 34 | CEBM-10-10 |
| 10 | M 12 | 10 | 18.0 | 4.5 | 6.2 | 39 | CEBM-10-12. |
| 16 | M 5 | 12 | 10.0 | 5.4 | 7.1 | 25 | CEBM-16-5 |
| 16 | M 8 | 12 | 10.0 | 5.4 | 7.1 | 27 | CEBM-16-6 |
| 16 | M 6 | 12 | 12.0 | 5.4 | 7.1 | 31 | CEBM-16-8 |
| 16 | M 10 | 12 | 16.0 | 5.4 | 7.1 | 36 | CEBM-16-10 |
| 16 | Ivl 12 | 12 | 18.0 | 5.4 | 7.1 | 41 | CEBIVI-16-12 |
| 25 | M 5 | 12 | 12.7 | 7.0 | 8.8 | 30 | CEBM-25-5 |
| 25 | M 6 | 12 | 127 | 7.0 | 8.8 | 30 | CEBM-25-6 |
| 25 | M 8 | 12 | 127 | 7.0 | 8.8 | 32 | CEBM-25-8 |
| 25 | M 10 | 12 | 16.0 | 7.0 | 8.8 | 37 | CEBM-25-10 |
| 25 | M 12 | 12 | 18.0 | 7.0 | 8.8 | 41 | CEBM-25-12 |
| 35 | M 5 | 15 | 15.7 | 8.6 | 10.8 | 36 | CEBM-35-5 |
| 35 | M 6 | 15 | 15.7 | 8.6 | 10.8 | 36 | CEBM-35-6 |
| 35 | M 8 | 15 | 15.7 | 8.6 | 10.8 | 36 | CEBM-35-8 |
| 35 | M 10 | 15 | 15.7 | 8.6 | 10.8 | 40 | CEBM-35-10 |
| 35 | M 12 | 15 | 16.0 | 8.6 | 10.8 | 44 | CEBM-35-12 |
| 35 | M 14 | 15 | 20.0 | 8.6 | 10.8 | 47 | CEBM-35-14 |
| 50 | M 6 | 16 | 17.0 | 9.6 | 11.8 | 42 | CEBM-50-6 |
| 50 | M 8 | 16 | 17.0 | 9.6 | 11.8 | 42 | CEBM-50.8 |
| 50 | M 10 | 16 | 17.0 | 9.6 | 11.8 | 42 | CE1510-50-10 |
| 50 | M 12 | 16 | 16.0 | 9.6 | 11.8 | 42 | CEBM-50-12 |
| 50 | M 14 | 16 | 20.0 | 9.6 | 11.8 | 46 | CEBM-50-14 |
| 50 | M 16 | 16 | 24.0 | 9.6 | 11.8 | 52 | CEBM-50-16 |
| 70 | M 6 | 18 | 22.0 | 12.0 | 15.0 | 47 | CEBM-70-6 |
| 70 | M 8 | 18 | 22.0 | 12.0 | 15.0 | 47 | CEBM-70-8 |
| 70 | M 10 | 18 | 22.0 | 12.0 | 15.0 | 47 | CEBM-70-10 |
| Cable mm2 | Stud Hole E | B | D | A | C | J | CAT No. |
| 70 | M 12 | 18.0 | 22.0 | 12.0 | 15.0 | 47.0 | CEBM-70212 |
| 70 | M 14 | 18.0 | 22.0 | 12.0 | 15.3 | 53.0 | CEBM-70-14 |
| 70 | M 16 | 18.0 | 24.0 | 12.0 | 15.3 | 54.0 | CEBM-7016 |
| 70 | M 20 | 18.0 | 30.0 | 12.0 | 15.3 | 64.0 | GERM-70-2d |
| 95 | M 8 | 20.3 | 24.0 | 13.5 | 16.5 | 52.0 | CEBM-95-8 |
| 95 | M 10 | 20.0 | 24.0 | 13.5 | 16.5 | 52.0 | 003M-95-10 |
| 95 | M 12 | 20.0 | 24.0 | 13.5 | 16.5 | 52.0 | GERM-95-12 |
| 95 | M 14 | 20.0 | 24.0 | 13.5 | 16.5 | 56.0 | GERM-95-14 |
| 95 | M 16 | 20.0 | 24.0 | 13.5 | 16.5 | 56.0 | CE6M-95-16 |
| 95 | M 20 | 20.0 | 30.0 | 13.5 | 16.5 | 66.0 | CEBM-95-20 |
| 120 | M 8 | 22.0 | 27.0 | 15.0 | 19.0 | 55.0 | CEBM•120.8 |
| 120 | M 10 | 22.0 | 27.0 | 15.0 | 19.0 | 55.0 | 0EBM•12010 |
| 120 | M 12 | 22.0 | 27.0 | 15.0 | 19.0 | 55.0 | CEBM-120.12 |
| 120 | M 14 | 22.0 | 27.0 | 15.0 | 19.0 | 55.0 | CEBM-120.12 |
| 120 | M 16 | 22.0 | 27.0 | 15.0 | 19.0 | 55.0 | CEBM-120-16 |
| 120 | M 20 | 22.0 | 27.0 | 15.0 | 19.0 | 68.0 | CEBM-120-20 |
| 150 | M 8 | 26.0 | 30.0 | 16.5 | 21.0 | 64.0 | CEBM-150-8 |
| 150 | M 10 | 26.0 | 30.0 | 16.5 | 21.0 | 64.0 | CEBM-150-10 |
| 150 | M 12 | 26.0 | 30.0 | 16.5 | 21.0 | 64.0 | 0EBM.150-12 |
| 150 | M 14 | 26.0 | 30.0 | 16.5 | 21.0 | 54.0 | CEBM-150-14 |
| 150 | M 16 | 26.0 | 30.0 | 16.5 | 21.0 | 64.0 | CEBM-150-16 |
| 150 | M 20 | 26.0 | 30.0 | 16.5 | 21.0 | 72.0 | CHM-150-20 |
| 185 | M 10 | 280 | 33.0 | 19.0 | 23,1 | 67.0 | CHM-185-10 |
| 185 | M 12 | 28.0 | 33.0 | 19.0 | 23.1 | 67.3 | CEBM-1B5-12 |
| 185 | M 14 | 28.0 | 33.0 | 19.0 | 23.1 | 67.0 | CE6M-185-14 |
| 185 | M 16 | 28.0 | 33.0 | 19.0 | 23.1 | 67.0 | CE6M•185-16 |
| 185 | M 20 | 28.0 | 33.0 | 19.0 | 23.1 | 75.0 | CEBM-185-20 |
| 240 | M 10 | 33.0 | 38.0 | 21.0 | 26.0 | 76.0 | CEBM-240-10 |
| 240 | M 12 | 33.0 | 38.0 | 21.0 | 26.0 | 76.0 | CE8M.240-12 |
| 240 | M 14 | 33.0 | 38.0 | 21.0 | 26.0 | 76.0 | CEBM-240.14 |
| 240 | M 16 | 33.0 | 38.0 | 21.0 | 26.0 | 76.0 | CHM.240-15 |
| 240 | M 20 | 33.0 | 38.0 | 21.0 | 26.0 | 82.0 | CEBM-240.20 |
| 300 | M 10 | 42.0 | 44.0 | 24.5 | 30.0 | 95.0 | 0E8M-30010 |
| 300 | M 12 | 42.0 | 44.0 | 24.5 | 30.0 | 95.0 | 0E8M-300-12 |
| 300 | M 14 | 42.0 | 44.0 | 24.5 | 30.0 | 95.0 | 0E8M-300-14 |
| 300 | M 16 | 42.0 | 440 | 24.5 | 30.0 | 95.0 | CE8M-300.15 |
| 300 | M 20 | 42.0 | 44.0 | 24.5 | 30.0 | 95.0 | CHM-300.2d |
| 400 | M 12 | 44.0 | 47.6 | 27.0 | 35.0 | 102.0 | CEI3M-400-12 |
| 400 | M 14 | 44.0 | 47.6 | 27.0 | 35.0 | 102.0 | CEBM40014 |
| 400 | M 16 | 44.0 | 47.6 | 27.0 | 35.0 | 102.0 | 0E13M-400.16 |
| 400 | M 20 | 44.0 | 47.6 | 27.0 | 35.0 | 102.0 | CEBM-400.20 |
| 500 | M 14 | 48.0 | 53.5 | 30.0 | 39.0 | 102.0 | CEBM-120.12 |
| 500 | M 16 | 48.0 | 53.5 | 30.0 | 39.0 | 112.0 | GEN-500-16 |
| 500 | M 20 | 48.0 | 53.5 | 30.0 | 39.0 | 112.0 | CEBM-500-20 |
| 630 | M 16 | 56.0 | 63.6 | 35.0 | 450 | 132.0 | CEBM-630-16 |
| 630 | M 20 | 56.0 | 63.6 | 35.0 | 45.0 | 132.0 | 0E8M•630-20 |
| 630 | M 10x4 | 56_0 | 63.6 | 35.0 | 45.0 | 135.0 | CHM-630-1041 |
