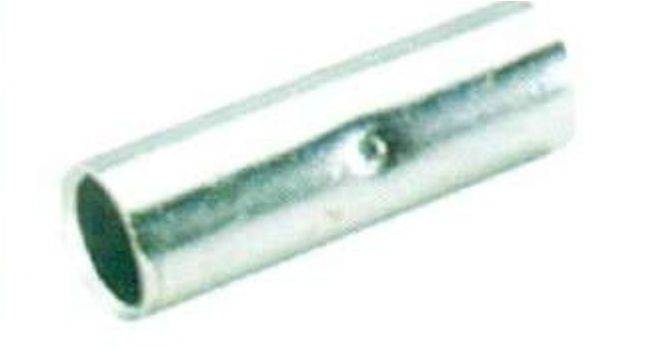

Copper heavy duty connectors (NON-Tension)

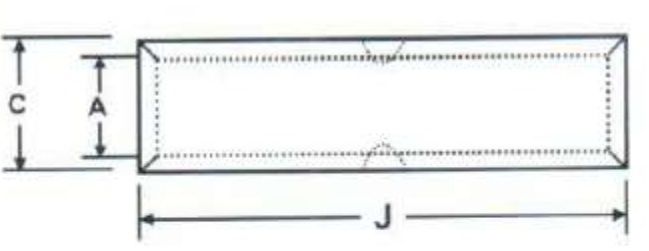

CABLE mm2	A	C	J	CAT. NO.
6	3.8	5.5	30	CEDC-6-30
10	4.5	6.0	30	CEDC-10-0
16	5.5	8.5	50	CEDC-16-50
25	7.0	10.0	50	CEDC-25-50
35	8.2	12.5	50	CEDC-35-50
50	10.0	14.5	56	CEDC-50-56
70	11.5	16.5	56	CEDC-70-56
95	13.5	19.0	70	CEDC-95-70
120	15.5	21.0	70	CEDC-120-70
150	17.0	23.5	80	CEDC-150-80
185	19.0	25.5	85	CEDC-185-85
240	21.5	29.0	90	CEDC-240-90
300	24.5	32.0	100	CEDC-300-100
400	27.5	28.5	150	CEDC-400-150
500	31.0	42.0	160	CEDC-500-160
625	34.5	44.0	160	CEDC-625-160
800	40.0	52.0	200	CEDC-800-200
1000	44.0	58.0	200	CEDC-1000-200
