 10.0 KVA |
ISOLATION | |

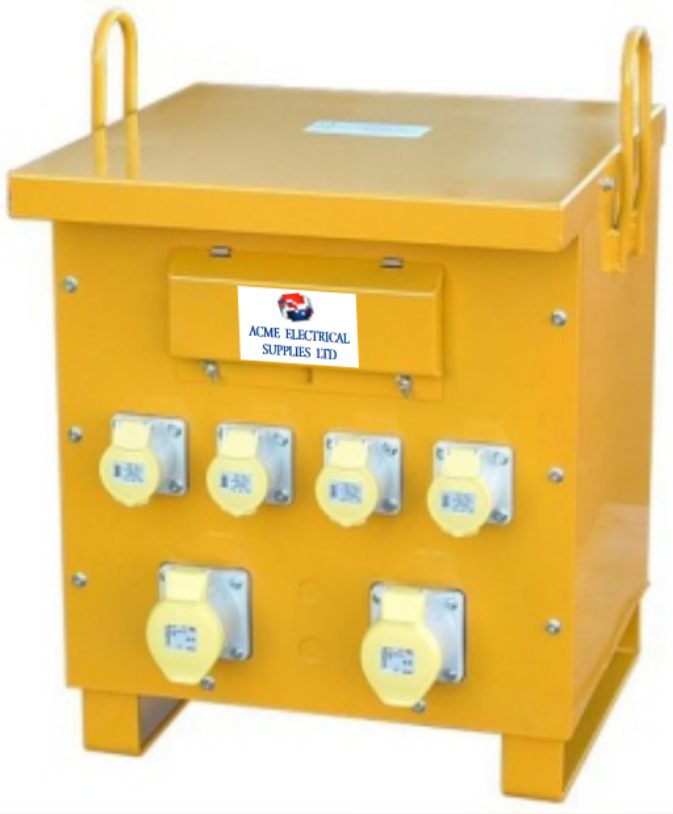

| PRODUCT | 10.0 KVA TRANSFORMER | |
| MODEL NO | P100/6 | |
| SAFETY LEVEL | Class I | |
| IP LEVEL | IP44 | |
| SAFETY CERTIFICATES | CE | |
| RoHS DIRECTIVE | COMPLIANT | |
| MATERIAL | CASE | MILD STEEL IP 23 |
| COLOUR | YELLOW | |
| ELECTRICAL | INPUT VOLTAGE | 400V AC 3 PHASE |
| OUTPUT VOLTAGE | 110V AC (55-0-55V) CTE | |
| FREQUENCY | 50/60Hz | |
| CONT. RATING | 10000VA | |
| TOOL RATING | 10000VA | |
| OUTPUT SOCKETS | 4x110V 16Amp ,2x110V 32Amp 2P+E, IP44 rated to EN 60309 | |
| CARTON BOX DIMENSION | QTY. OF EACH CARTON | 1 |
| NET WEIGHT | 65 | |
| GROSS WEIGHT | 85 | |
| OUTER BOX DIMENSION | 44.0 x 43.0 X 50.0 cm | |
