 3.0KVA |
ISOLATION | |

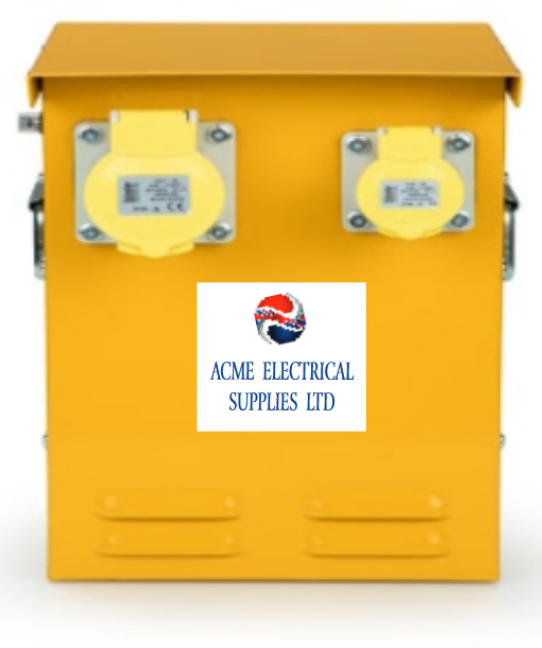

| PRODUCT | 3.0 KVA TRANSFORMER | |
| MODEL NO | H30/2 | |
| SAFETY LEVEL | Class I | |
| IP LEVEL | IP44 | |
| SAFETY CERTIFICATES | CE | |
| RoHS DIRECTIVE | COMPLIANT | |
| MATERIAL | CASE | MILD STEEL IP 22 |
| COLOUR | YELLOW | |
| ELECTRICAL | INPUT VOLTAGE | 230V AC 1 PHASE |
| OUTPUT VOLTAGE | 110V AC (55-0-55V) CTE | |
| FREQUENCY | 50/60Hz | |
| CONT. RATING | 3000VA | |
| TOOL RATING | 3000VA | |
| MAINS INPUT CABLE | CABLE | 2.5 MM² 3 CORE RUBBER CABLE – H07RN-F |
| DIMENSIONS | 2000 MM IN LENGTH | |
| COLOUR | BLACK | |
| OUTPUT SOCKETS | 1x110V 16Amp ,1x110V 32Amp 2P+E, IP44 rated to EN 60309 | |
| PLUG | 230V 13A BS UK 3 PIN PLUG (TO BS 1363/A) WITH 13A FUSE (TO BS 1362) | |
| CARTON BOX DIMENSION | QTY. OF EACH CARTON | 1 |
| NET WEIGHT | 29 | |
| GROSS WEIGHT | 30 | |
| OUTER BOX DIMENSION | 19.5 x 19.5 X 26.5 cm | |
